XiangAn Automatic Chain link fence weaving machines the one which newly researched by our company , which can weave a large wire mesh scope and thick wire mesh. It work strongly and own big carrying capacity, widely density range.Its works own smooth surface and beautiful appearance.The machine has high efficiency and quality with compact structure, small volume, easy operation and regulation, convenient maintenance and low power consumption.

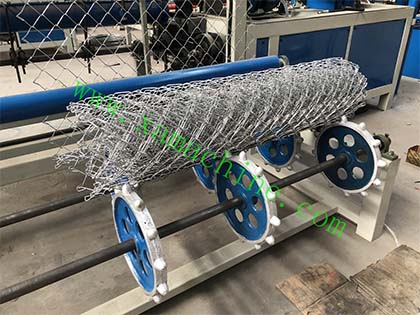

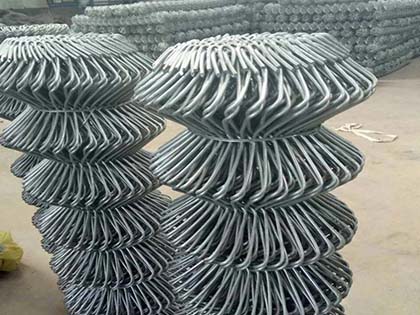

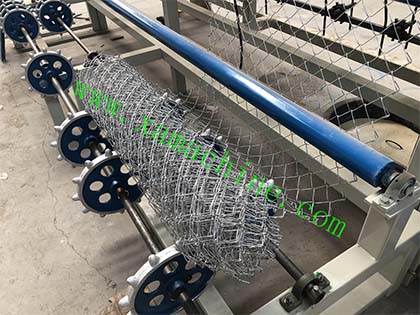

The Fence Mesh Picture

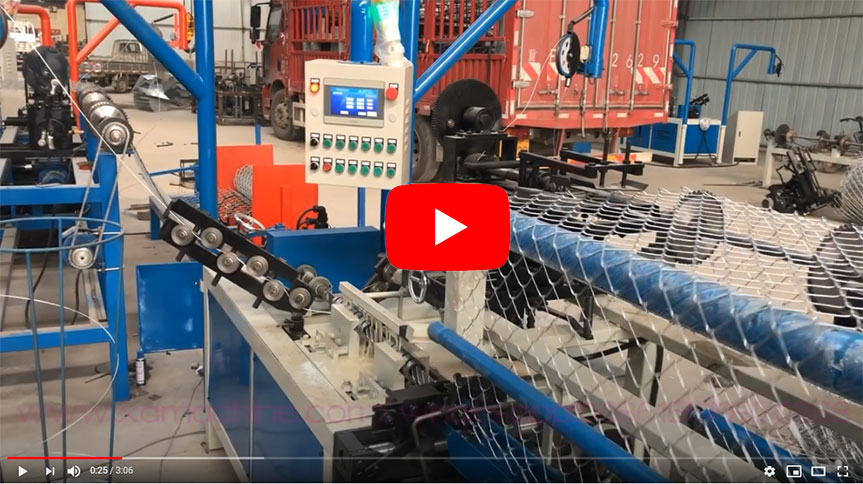

The Machine Video Link
Double wire feeding weaving machine
| Model | Each time feed two wires. |
| Mesh Size | 25mm-100mm |
| Wire Diameter | 1.3-5mm |
| Weaving Width | 2M-6M |
| Wire Materials | PVC Wire, Galvanized Wire, Al Wire etc |
| Speed | 50-250Sqm/Hour |
| Servo motor | Taiwan |
| Motor power | 2.2kw*1 5.5kw*1 1.5kw*1 0.75Kw*1 |
| Weight | 3.8Ton-4.5Ton |
| Feature | Each time feed two wires, High capacity then single feeding machine It need the two roller wires have same or similar hardness |

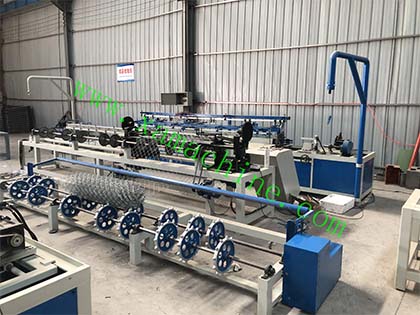

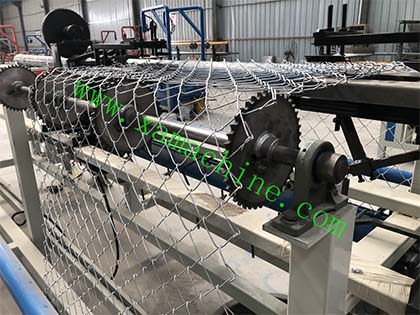

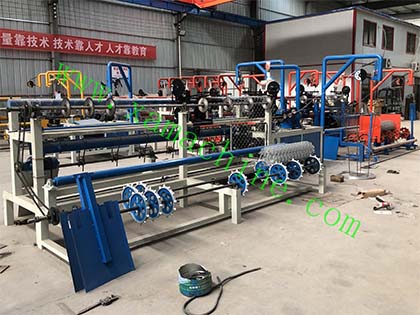

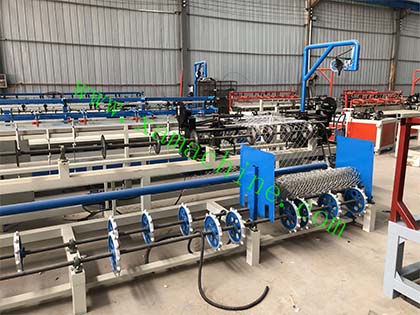

Double wire feeding machine
Single wire feeding machine
| Model | Each time feed one wires. |
| Mesh Size | 25mm-100mm |
| Wire Diameter | 1.3mm-5mm |
| Weaving Width | 2M-6M |
| Wire Materials | PVC Wire, Galvanized Wire, Al Wire etc |
| Speed | 30-180Sqm/Hour |
| Servo motor | Taiwan |
| Motor power | 2.2kw*1 5.5kw*1 1.5kw*1 0.75Kw*1 |
| Weight | 3.5Ton-4.2Ton |
| Feature | Each time feed single wires, The demand of the wire hardness is low It can weave bigger wire diameter range than double wire. Capacity is a little less than double feeding machine |

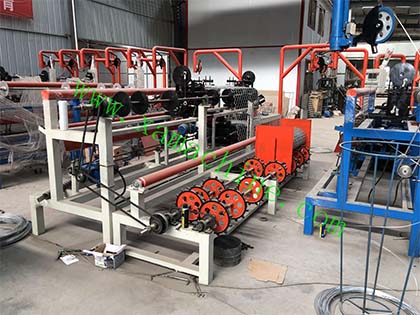

Single wire feeding machine

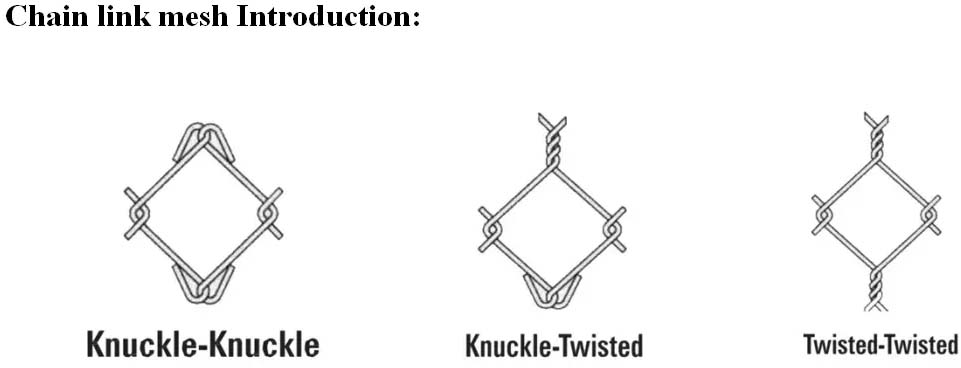

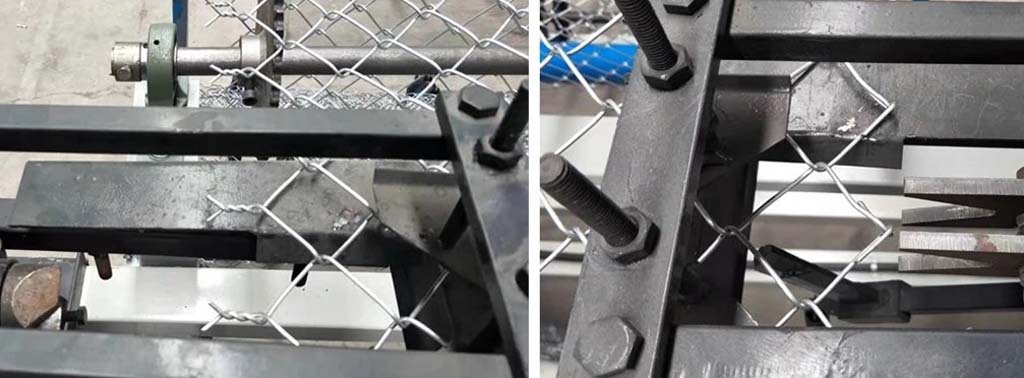

Edge Treatment
The Auxiliary Machines.
The Chain Link Fence Compress Table.
The chain link fence from the weaving machine has a big roller, the table can help to compress it.
before compressed.
after compressed.
