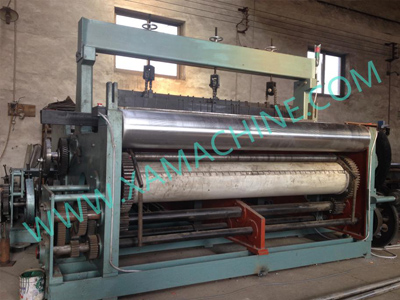

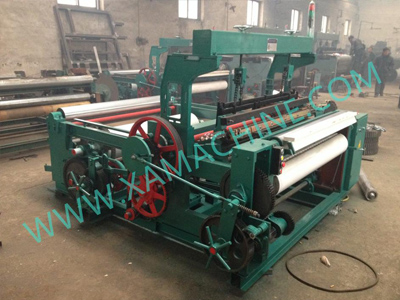

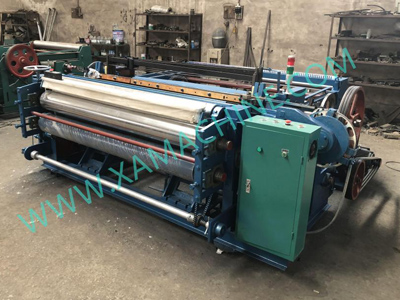

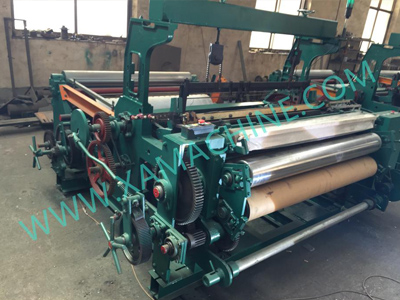

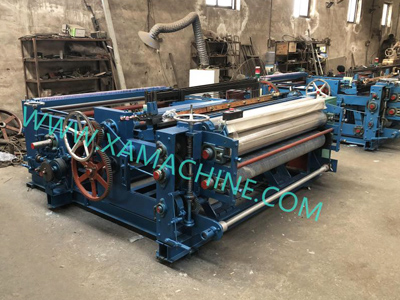

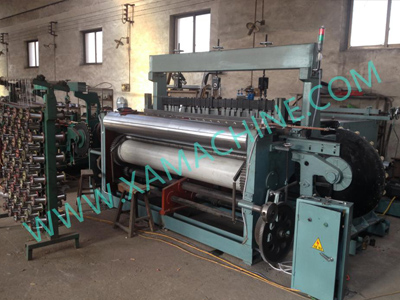

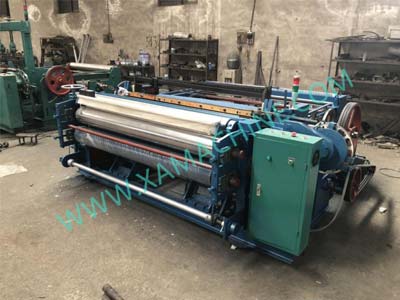

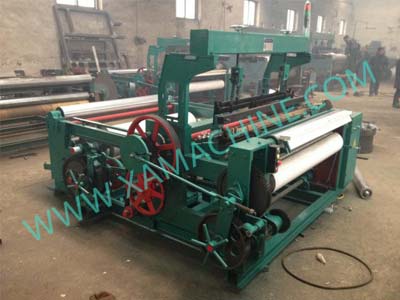

XiangAn shuttleless weaving machineis the one which newly researched by our company , which can weave a large wire mesh scope and thick wire mesh. It work strongly and own big carrying capacity, widely density range.Its works own smooth surface and beautiful appearance.The machine has high efficiency and quality with compact structure, small volume, easy operation and regulation, convenient maintenance and low power consumption.
Especially, it uses a unique power transmission design of gear to winding nets,and hanging heald frame.The two designs ensure effectively the capacity to weave thicker wire.

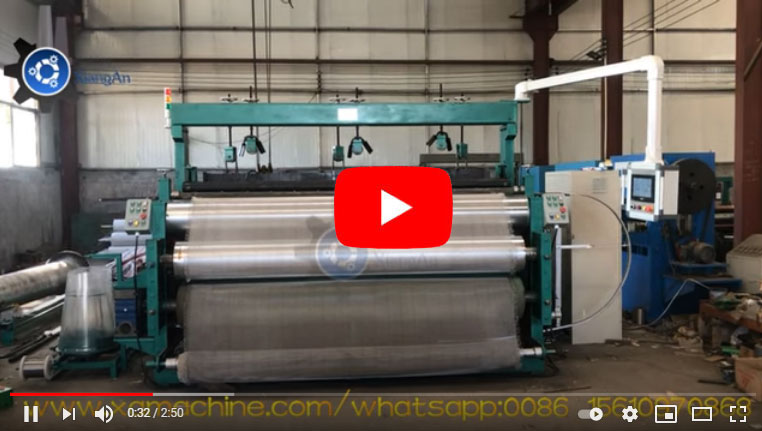

The Machine Video Link

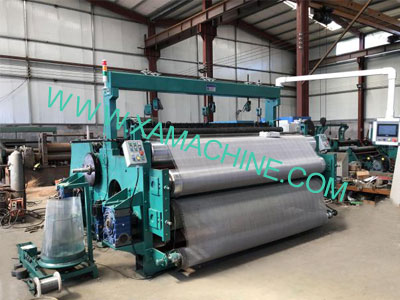

The Parameters of Model CNC
| Model | XiangAn -CNC |
| Mesh Density | 4-2300 |
| Wire Diameter | 0.018-2mm |
| Frames | 4 |
| Wire Materials | Nickel Wire, S’Steel Wire, Galvanized Wire, Alufer Wire etc |
| Reed Space/Width | 1300mm/1600mm/2000mm/4000mm |
| Crank Rpm | 90-120r/min Controled by VFD |
| Driving Mode | Servo Motor,PLC System |
| PLC Brand | Siemens |
| Servo Motor | Taiwan XinJie |
| Servo Reduction | Germany Brand |
| Collection | Rubber Roller-Endless Collection Way |
| Engine Power | 2.2KW-20.0KW |
| Weight | 3.5Ton-45Ton |
The Parameters of Model B
| Model | XiangAn -B |
| Mesh Density | 40-2300 |
| Wire Diameter | 0.018-0.2mm |
| Frames | 4 |
| Wire Materials | Nickel Wire, S’Steel Wire, Galvanized Wire, Alufer Wire etc |
| Reed Space/Width | 1300mm/1600mm/2000mm |
| Crank Rpm | 90-120r/min Controled by VFD |
| Driving Mode | Electrical motor, V-belt, Crank |
| Gripper | Carbon Fiberglass |
| Collection | Rubber Roller-Endless Collection Way |
| Engine Power | 2.2KW-3.0KW |
| Weight | 3.5Ton-4.5Ton |
The Parameters of Model N
| Model | XiangAn– N |
| Mesh Density | 14-200 |
| Wire Diameter | 0.08-0.71mm |
| Frames | 2/4 |
| Wire Materials | Nickel Wire, S’Steel Wire, Galvanized Wire, Alufer Wire etc |
| Reed Space/Width | 1300mm/1600mm/2000mm |
| Crank Rpm | 90-120r/min Controled by VFD |
| Driving Mode | Electrical Motor, V-belt, Crank |
| Gripper | Carbon Fiberglass |
| Strikes | Double Beat |
| Collection | Rubber Roller-Endless Collection Way |
| Engine Power | 2.2KW-3.0KW-4.0KW |
| Weight | 3.8Ton-5.0Ton |

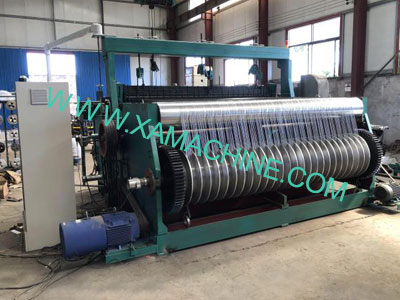

The Parameters of Model Heavy-Duty
| Model | XiangAn–Heavy Duty |
| Mesh density | 5-70 |
| Wire Diameter | 0.16-2.2mm |
| Frames | 2/4 |
| Wire Materials | Nickel Wire, S’Steel Wire. Galvanized Wire, Alufer wire etc |
| Reed Space/Width | 1300mm/1600mm/2000mm |
| Crank RPM | 45-90r/min Controled by VFD |
| Driving Mode | Electrical motor, V-belt, Crank |
| Gripper | Carbon Fiberglass |
| Strikes | Double Beat |
| Collection | Rubber Roller-Endless Collection Way |
| Engine power | 3.0KW-4.0KW-5.0KW |
| Weight | 5.0Ton-7.0Ton |
The Auxiliary Machines.
1 Wire Warping Machine
The Wires need to be warped to be on the Warping Beam from the Bobbins.
2.Wire Rewinding Machine
It can rewind the little bobbin to be a big one, and the wires on the bobbin is not symmetrical, and easily break, so in order to reduce the wire breaking on weaving or warping, you need to rewind the bobbins.
3.Warping Beam Carrier
It can carry the full wire beam to the weaving machine.
4.Wire Mesh Cutting Machine
Wire mesh cutting machine can cut the mesh to be some strips.
5 Wire Join Machine
This machine can join the SS wire together.Diameter from 0.1-0.7MM
